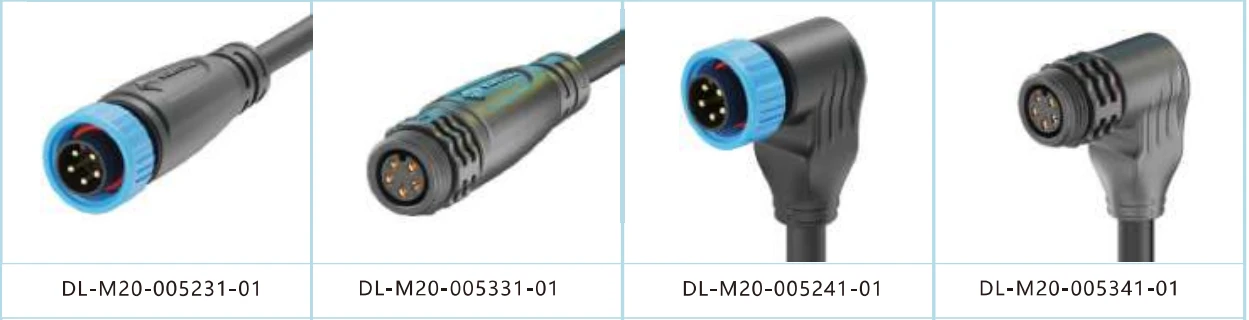

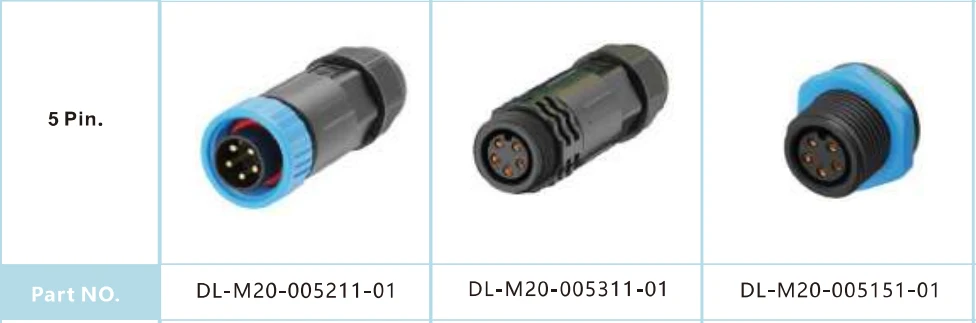

M20 5pin Waterproof Connector

The M20 5-pin Waterproof Connector offers an optimal number of contacts for systems that integrate primary power with auxiliary control or signaling. It serves as a centralized wiring node, simplifying connections in devices that need more than basic power links. This connector acts as the core nervous system for compact, multi-functional electrical setups.

Send Inquiry

product-976-322

product-1247-324

product-976-323

product-1249-320

Product Introduction

The M20 5-pin waterproof connector, as the central nervous system of a compact multifunctional electrical device, provides the best contact density for integrating the main power supply and auxiliary control channels. When these functions are integrated into one interface, the connection density of those auxiliary devices is greatly reduced.

Product Parameter

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP68 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	10A max
Min Wire Size OD	5.0mm
Max Wire Size OD	6.5mm ~10.0mm
Max.Cable Cross Section Area	0.5mm2 ~ 2.5mm2

Product Feature And Application

Protected by a vibration-proof self-locking system and IP68 sealing, this connector ensures stable transmission across all five circuits, minimizing signal loss in professional broadcast gear and telecommunications infrastructure. Its corrosion-resistant build reliably handles renewable energy controls and automated test equipment, offering a secure, multi-circuit interface for complex sensor arrays where performance depends on uninterrupted connectivity in limited spaces.
